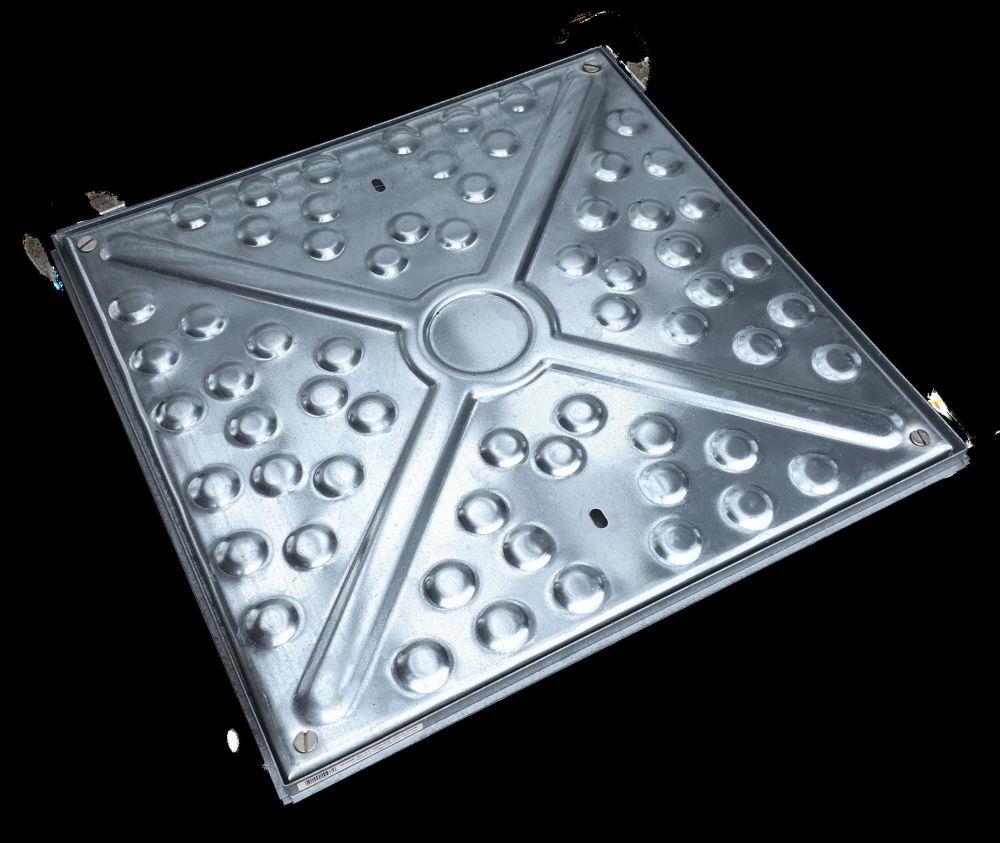

600 x 600mm 5 Tonne, Sealed & Locking 4 Screw, Steel Frame

The 600 × 600mm 5 Tonne Sealed & Locking Access Cover with Galvanised Top and Steel Frame is a secure, light-duty access solution designed for pedestrian and domestic environments where strength, stability, and controlled access are required. Featuring a galvanised steel cover secured with a 4-screw locking system and housed within a rigid steel frame, this unit provides dependable performance with added security and durability.

Designed for pedestrian use, this access cover is ideal for footpaths, patios, gardens, and paved areas where underground services require protection from unauthorised access, odours, and surface water ingress. The sealed construction helps contain odours and minimise water penetration, while the steel frame delivers enhanced rigidity for installations in concrete or paving. The 600 × 600mm clear opening allows generous access for inspection and routine maintenance.

Key Features

• 5 tonne light-duty sealed and locking access cover

• Galvanised steel top with 4-screw locking system

• Sealed design to reduce odours and limit water ingress

• Rigid steel frame for increased stability

• 600 × 600mm square clear opening

• Designed for pedestrian and domestic applications

• Durable, low-maintenance construction

Typical Applications

• Pedestrian walkways and footpaths

• Patios and paved domestic surfaces

• Gardens and landscaped areas

• Sealed utility and inspection access points

• Areas requiring secure, controlled access

Performance & Workability

• Galvanised steel cover resists corrosion, moisture, and surface wear

• Steel frame provides excellent rigidity and long-term stability

• Sealed construction helps prevent odour escape and water ingress

• Locking screws deter unauthorised removal

• Suitable for installation in concrete, paving, or blockwork surrounds

• Designed for low-maintenance, long-term external use

Technical Specification

• Product Type: Sealed & Locking Pedestrian Access Cover

• Cover Material: Galvanised Steel

• Frame Material: Steel

• Clear Opening: 600 × 600mm

• Load Rating: 5 Tonne

• Locking System: 4 Screw Fixing

• Application: Pedestrian & Domestic External Areas

British Standard Information

This access cover is designed for pedestrian and light-duty applications and should be selected in accordance with BS EN 124 guidance. The 5 tonne load rating is suitable for non-vehicular areas and should not be used where classified EN 124 vehicular-rated covers are required.

Why Choose the 600 × 600mm 5 Tonne Sealed & Locking Access Cover with Steel Frame?

Offering added security and structural stability, this sealed and locking access cover is ideal for pedestrian environments where controlled access and durability are essential. The galvanised steel top, secure 4-screw fixing, and rigid steel frame provide a robust, low-maintenance solution for domestic and external applications.
